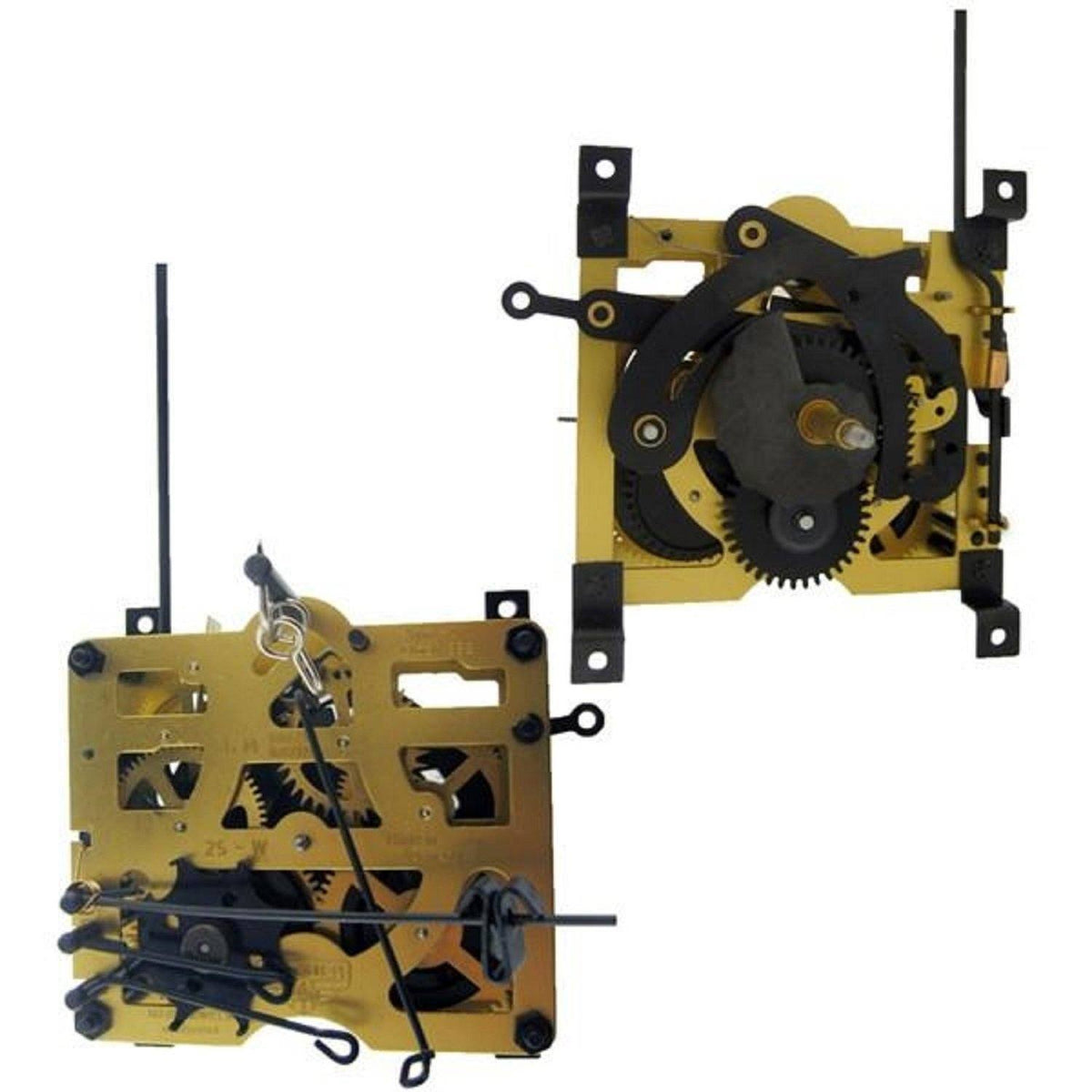

Regula R25 2-Weight Cuckoo Clock Movement

The Regula R25 is a one-day, weight-driven cuckoo clock movement for clocks requiring two weights. Select the version that matches the model marking and pendulum length of your original movement.

Specifications

• Rear pendulum escapement
• 2-chain wind
• 1 hammer for rear gong
• 40 mm hand shaft
• Plate size: 73 x 63 mm
• Made in Germany
• Supplied with bird rod, chains, stop rings, weight hooks and hand nuts
• Weights and pendulum are not included

Movement Options

• R25: 19 cm pendulum length (approximately 7 3/4 in.). The model number 25 is marked on the back plate.
• R25L: 23 cm pendulum length (approximately 9 1/4 in.). The model number 25L is marked on the back plate.

Pendulum length is measured from the suspension spring post to the center of the pendulum decoration/leaf. The older R25-series specifications call for two 275 g (5/8 lb.) weights.
