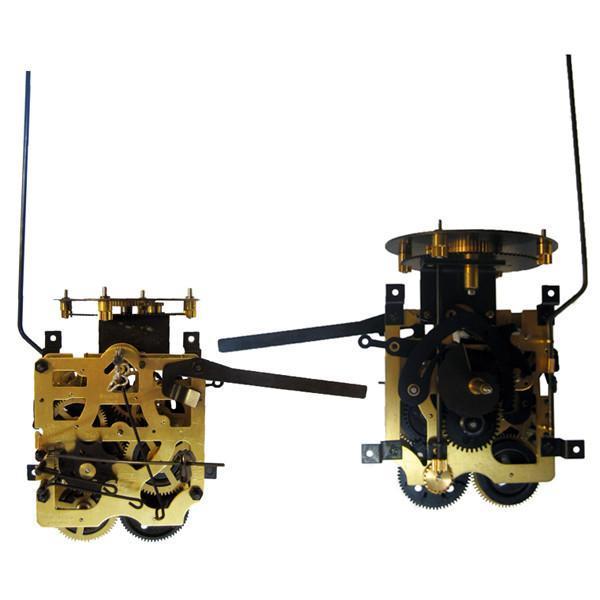

Regula R25 3-Weight Cuckoo Clock Movement

The Regula R25 three-weight series consists of one-day musical cuckoo clock movements used with a dancing platform. Choose the exact configuration that corresponds to your original movement and platform height.

Specifications

• Rear pendulum escapement
• 3-chain wind
• 1 hammer for rear gong
• 40 mm hand shaft
• Plate size: 73 x 73 mm
• Made in Germany
• Supplied with bird rod, chains, stop rings, weight hooks, hand nuts and extended post for music activation
• Weights and pendulum are not included

Movement Options

• 25/24: 19 cm pendulum; dancing platform approximately 2 1/4 in. above center shaft.
• 25/24L: 23 cm pendulum; dancing platform approximately 58 mm above the hand shaft.
• 25/41: 23 cm pendulum; dancing platform approximately 74 mm above the hand shaft.
• 25/41S: 19 cm pendulum; dancing platform approximately 74 mm above the hand shaft.
• 25/41BL: 23 cm pendulum; dancing platform approximately 74 mm above the hand shaft and extended drive shaft for band linkage.
• 25/51: 23 cm pendulum; dancing platform approximately 85 mm above the hand shaft.

These movements traditionally use three 320 g weights. Dancing-platform height is measured from the hand shaft to the top of the platform where the dancers sit.
