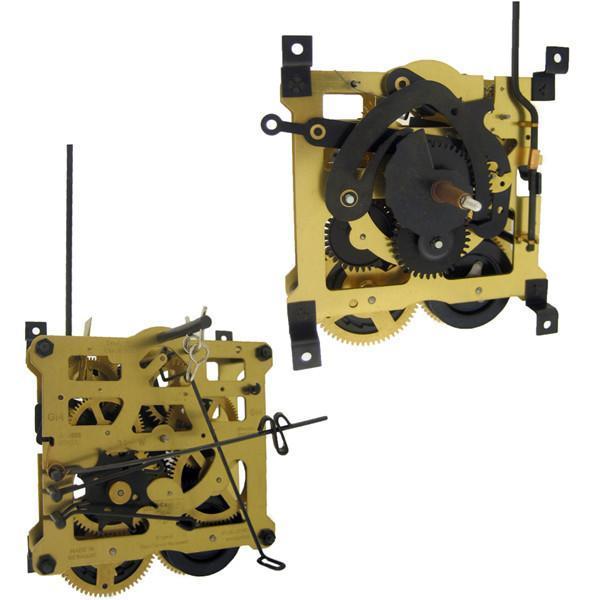

Regula R34 2-Weight 8-Day Cuckoo Clock Movement

The Regula R34 is a popular eight-day, weight-driven cuckoo clock movement. This listing covers the current two-weight R34 configurations. Select the version that matches the model and pendulum length of your original movement.

Specifications

• Rear pendulum escapement
• 2-chain wind
• 1 hammer for rear gong
• 40 mm hand shaft
• Plate size: approximately 85 x 75 mm
• Made in Germany
• Supplied with bird rod, chains, stop rings, weight hooks and hand nuts
• Weights and pendulum are not included

Movement Options

• R34: 19.1 cm pendulum; standard suspension post.
• R34/63: 23.5 cm pendulum; standard suspension post.
• R34/66: 28.5 cm pendulum; standard suspension post.
• R34 LP: 19.1 cm pendulum; 45 mm long suspension post.
• R34/63 LP: 23.5 cm pendulum; 45 mm long suspension post.
• R34/59: 40 cm pendulum.

Standard suspension-post length is approximately 35 mm from the rear plate; LP versions use a 45 mm post. Pendulum length is measured from the suspension spring post to the center of the pendulum leaf. 1500 g weights are recommended for best results and are required for the R34/59.
