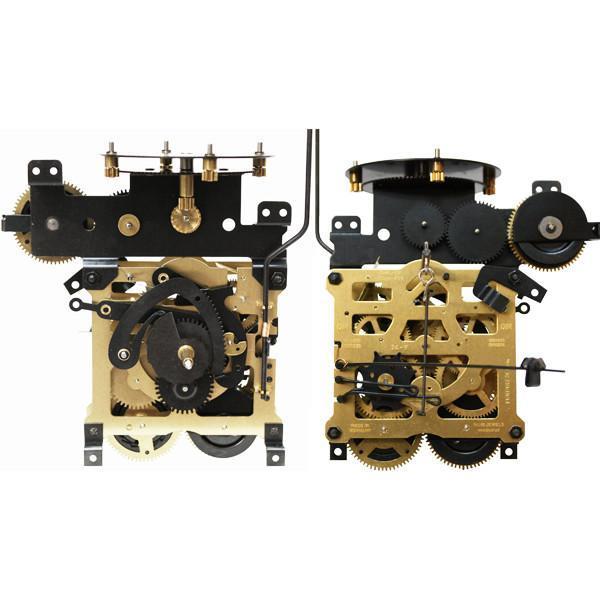

Regula R34 3-Weight 8-Day Cuckoo Clock Movement

The Regula R34 three-weight series is an eight-day cuckoo clock movement designed for musical clocks with a dancing platform. Select the configuration that matches your original movement.

Specifications

• Rear pendulum escapement
• 3-chain wind
• 1 hammer for rear gong
• 40 mm hand shaft
• Plate size: approximately 85 x 75 mm
• Made in Germany
• Supplied with bird rod, chains, stop rings, weight hooks, hand nuts and extended post for music activation
• Weights and pendulum are not included

Movement Options

• R34/44: 28.5 cm pendulum; dancing platform approximately 81 mm above the hand shaft.
• R34/46: 23.5 cm pendulum with band linkage; dancing platform approximately 81 mm above the hand shaft.

These movements require three weights of approximately 1500 g each (two for the movement and one for the music box). Older specifications list approximately 47 mm from the top of the movement to the dancer platform.
